Barco ClickShare CSM-1 Set



JES Code: JES:R9861017-SET/RB


Drahtloses Präsentations- und Kooperationssystem von Barco mit dem alle Sitzungsteilnehmer Inhalte auf dem zentralen Bildschirm im Sitzungsraum teilen können, ClickShare CSM-1 Base Unit, 2x ClickShare Button USB-A, used & redurbished

Qualitäts-Standard: STANDARD
JES Garantie: 3 Monate
Lieferumfang: ClickShare CSM-1 Base Unit (1x), ClickShare Button USB-A (2x)


CHF249.00 CHF399.00 ink. MwSt


Data Sheet

This product is delivered in STANDARD quality ! – for example with smaller optical traces of use, which are clearly visible, but functionally absolutely irrelevant.

Product information:

ClickShare is Barco’s wireless presentation and collaboration system that allows all meeting participants to share content on the central screen in the meeting room.

An unparalleled user experience

With the click of a button, content visible on your laptop, tablet or smartphone is displayed on the big screen. This way, all participants are more intensively involved in the decision-making process. Combining extreme simplicity with an unmatched user experience, everyone who uses ClickShare is immediately hooked. Because of the system’s stability and ease of use, little IT intervention is required.

Straight to the screen, with any device

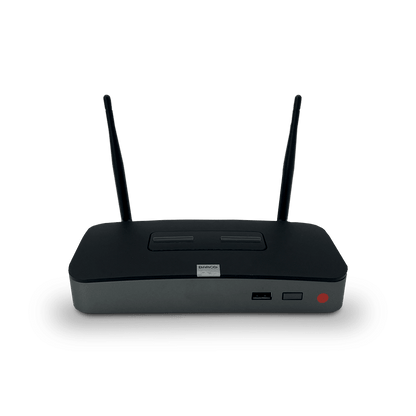

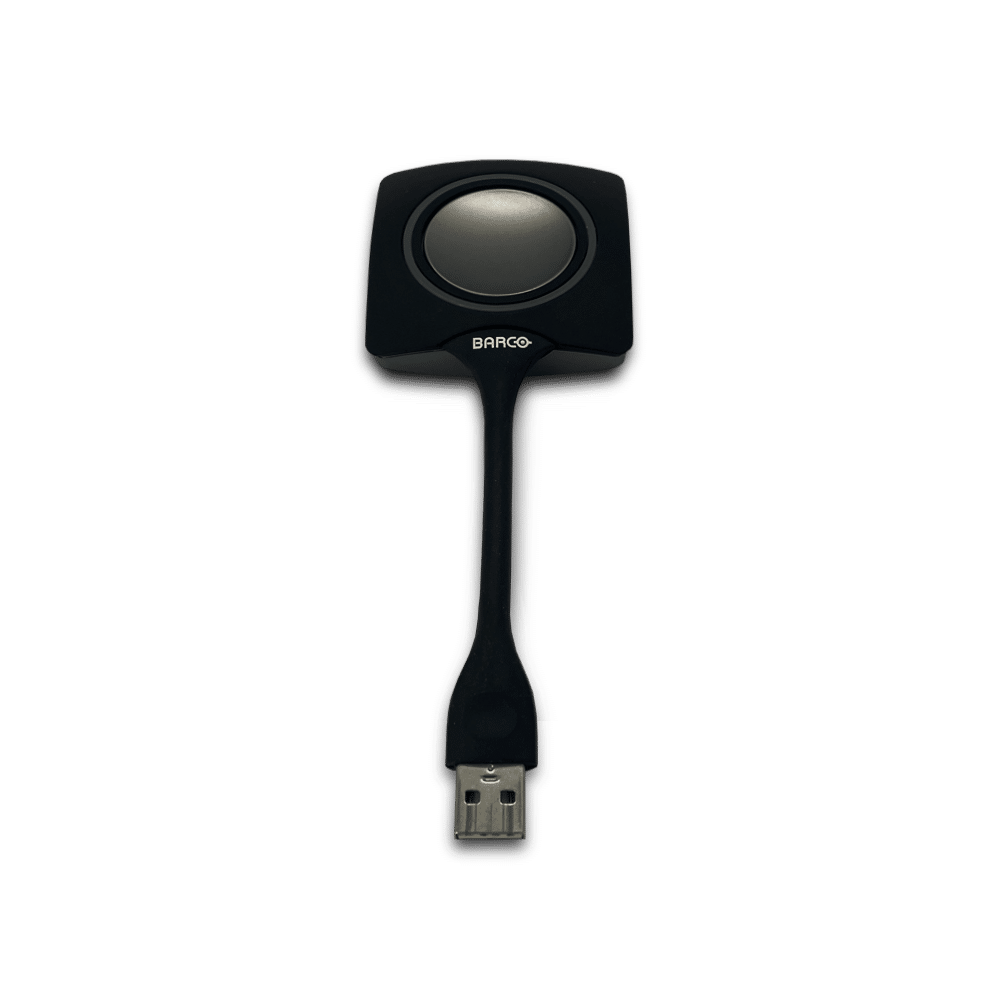

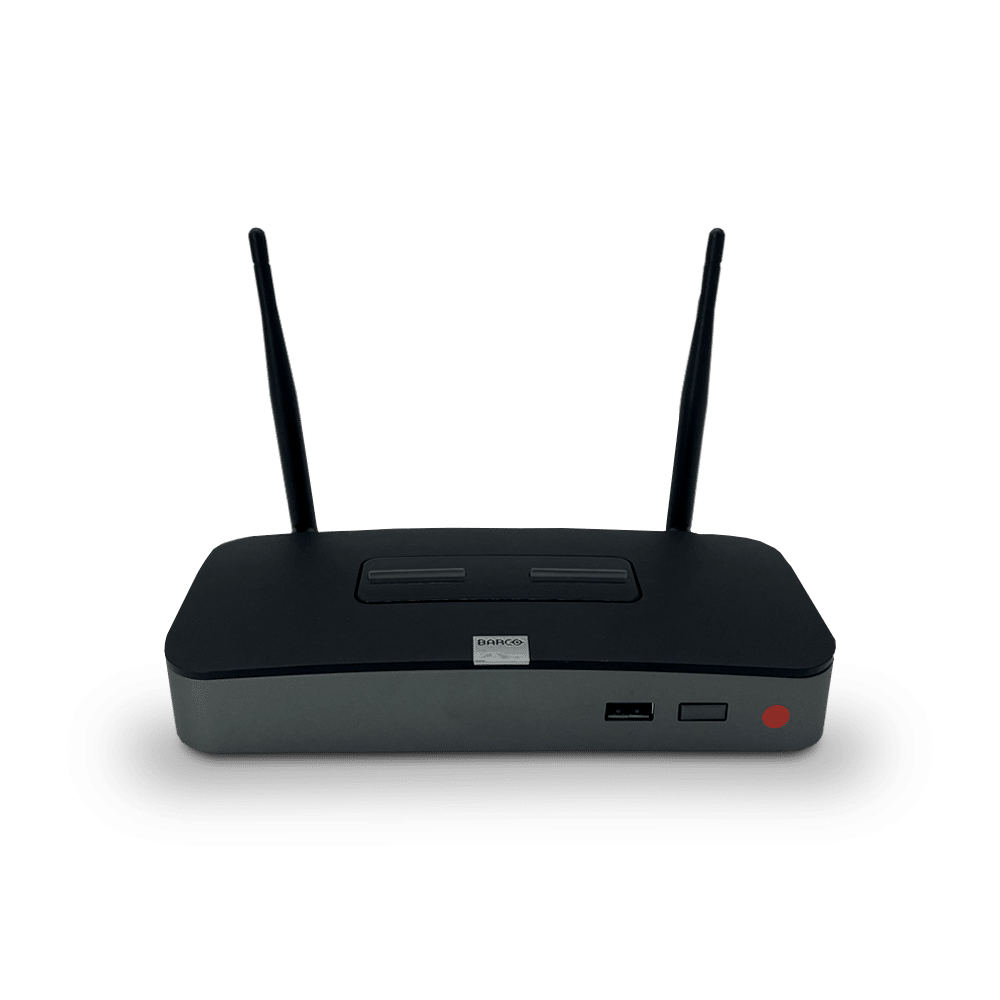

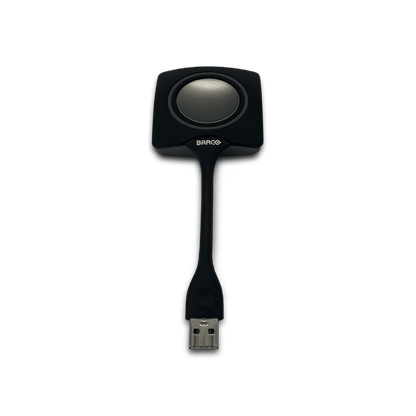

A ClickShare CSM-1 set consists of two USB-powered devices, ClickShare Buttons and a Base Unit. The Base Unit has a fixed connection to the conference room’s visualization system and handles the necessary processing. Users who want to display their presentation on the large screen of the meeting room simply connect a Button to their PC or MAC. They launch the application and click the ClickShare button. This instantly wirelessly transfers their desktop to the large visualization system. Alternatively, if you are using a smartphone or tablet (with iOS or Android operating systems), a simple app allows you to share content. At the same time, two people can transfer their content to the central screen.

How does it work?

A ClickShare CSM set consists of two USB-powered devices (the “ClickShare Buttons”) and a Base Unit. The Base Unit has a fixed connection to the conference room’s visualization system and handles the necessary processing. Users who want to display their presentation on the conference room’s large display device simply connect a Button to their PC or MAC. They launch the application, click the ClickShare button, and immediately their desktop presentation is wirelessly transmitted to the large visualization system. ClickShare also does not affect the resolution of the laptop and automatically displays the screen content in the optimal way.

Confidence and collaboration

ClickShare just works. It may sound obvious, but when you consider how much time is lost these days trying to connect the laptop to the display device in the conference room, it’s a huge relief for all presenters. The result is greater confidence, which leads to better presentations. With the ClickShare app for Android or iOS, users can also display content from their tablet or smartphone on the conference room screen via ClickShare.


ClickShare’s CSM Base Unit is designed specifically for standard meeting rooms. It provides the essential ClickShare experience within the budget of any organization.

Production period & condition:

Production period: August 2014 – February 2016
Category: used & refurbished
Quality standard: STANDARD

Warranty / Guarantee:

Manufacturer’s Warranty: expired / no remaining warranty
JES Warranty: 3 months


Weight:  530 grams (including antennas)
Dimensions (HxWxD):  Without antennas: 37 x 186 x 85 mm
With antennas: 125 x 186 x 121 mm
Power consumption:  Standby 3.5 W / Operation typical: 6 W / Maximum: 7.5-9.7 W
AirPlay support:  iOS mirroring (AirPlay) from iOS 9.0 to iOS 10.2/Mac OS 10.12 El Capitan or later.
Google Cast Support:  Google Cast is not supported
Operating System:  Windows 7/8/8.1/10, 32 & 64 Bit
macOS 10.10/10.11/10.12 (Sierra)
Android v5 & v6 (ClickShare App)
iOS 8 & 9 (ClickShare App)

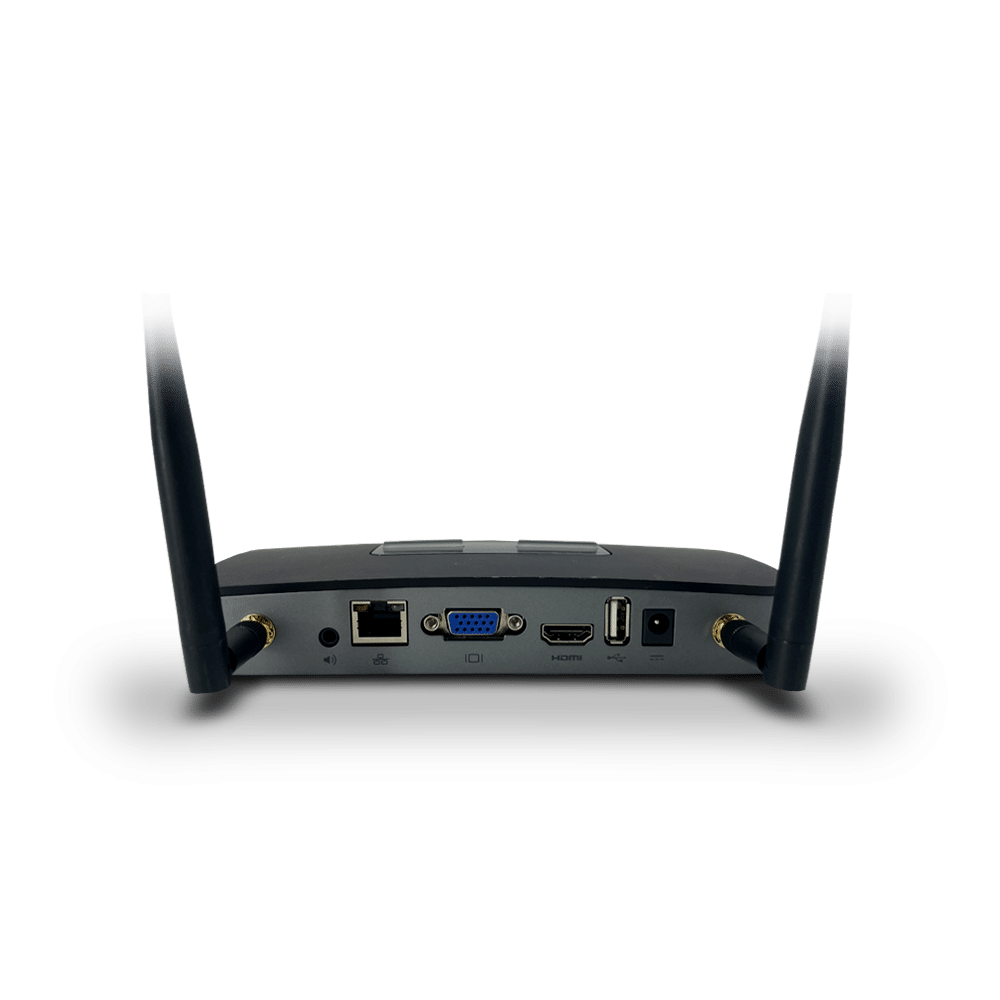

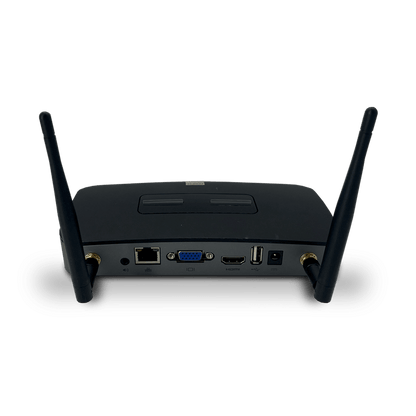

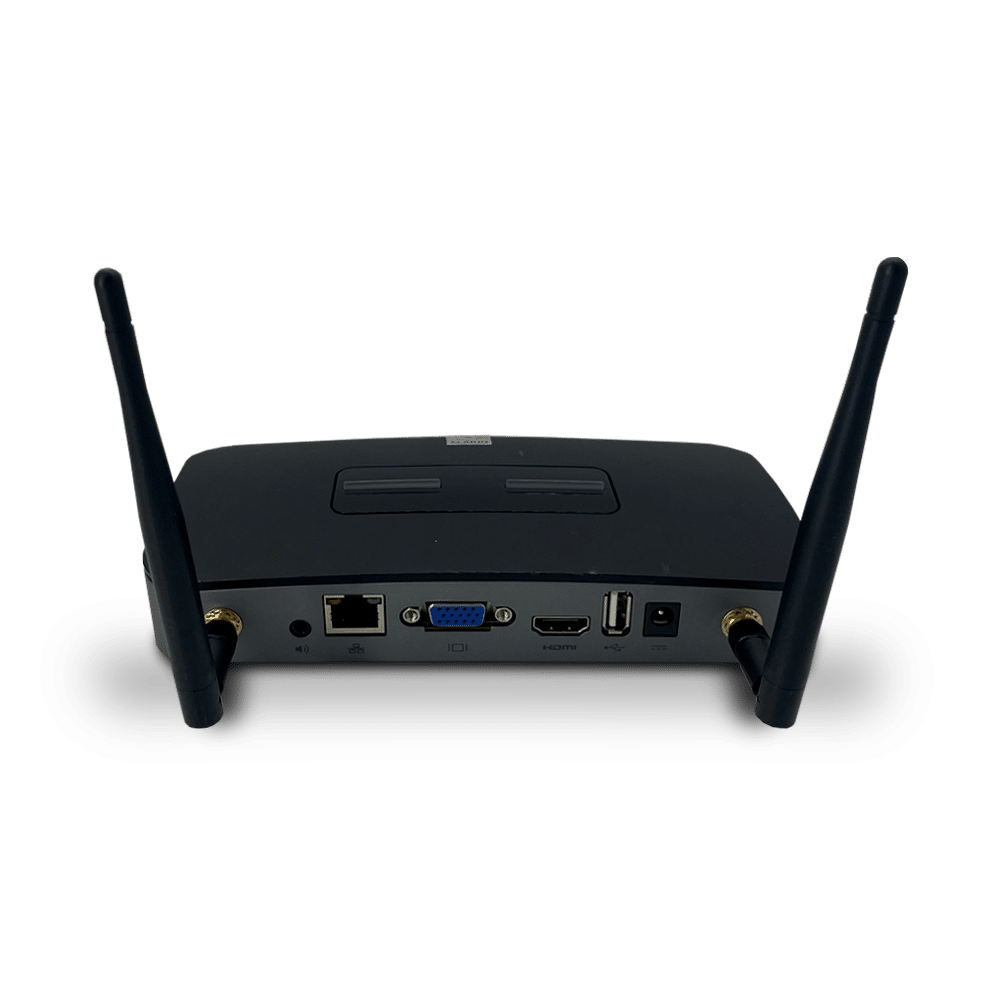

Video Outputs:  HDMI (video and audio), 15-pin VGA
Frame rate:  Up to 30 fps, depending on the environment
Output resolution:  HDMI: 1,280×720 (720 p), 1,920×1,080 (1,080 p)
VGA: SVGA (800×600) / XGA (1,024×768) / WXGA (1,280×768) / WXGA+(1,280×800)
Number of simultaneous sources:  2 (2 via buttons, 1 from mobile device)
Number of simultaneous connections:  8
Audio:  Radio quality 16 bits 22 KHz (no synchronization) via audio jack or HDMI
Compatibility with iPad, iPhone and Android:  Available via ClickShare Presenter app for static content.
Enhanced Desktop:  Available (depending on the driver for your graphics card).
Authentication protocol:  WPA2-PSK
Wireless transfer protocol:  IEEE 802.11 a/b/g/n
Wireless data rate:  Up to 300 Mbps
Range:  Max. 30 m between ClickShare Button and ClickShare Base Unit, depending on environment.
Frequency band:  2.4 Ghz and 5 GHz (DFS channels are not supported)

Package content:

ClickShare CSM-1 Base Unit: yes (1x refurbished)
ClickShare Button USB-A:  yes (2x used & tested)
Power cable & power supply:  yes (1x used & tested)
Installation & Driver DVDs:  not included in the scope of delivery

Delivery method

PostPac Priority or pickup at our store in Zurich-Oerlikon
